32 Tonne Cheese Wedge Beavertail with Crane

PDF
Description

32T DAF Euro 5 Cheese Wedge Beavertail Crane for hire



Download Vehicle Specification Sheet here



Vehicle Manufacture



DAF

Model



Gearbox



 Axle Config

FAXCF85 410 with 12.6 litre MX Engine



Direct Drive Manual 12 Speed

1st and 2nd Axle Steer, 3rd Traction 4th Steer



Specification

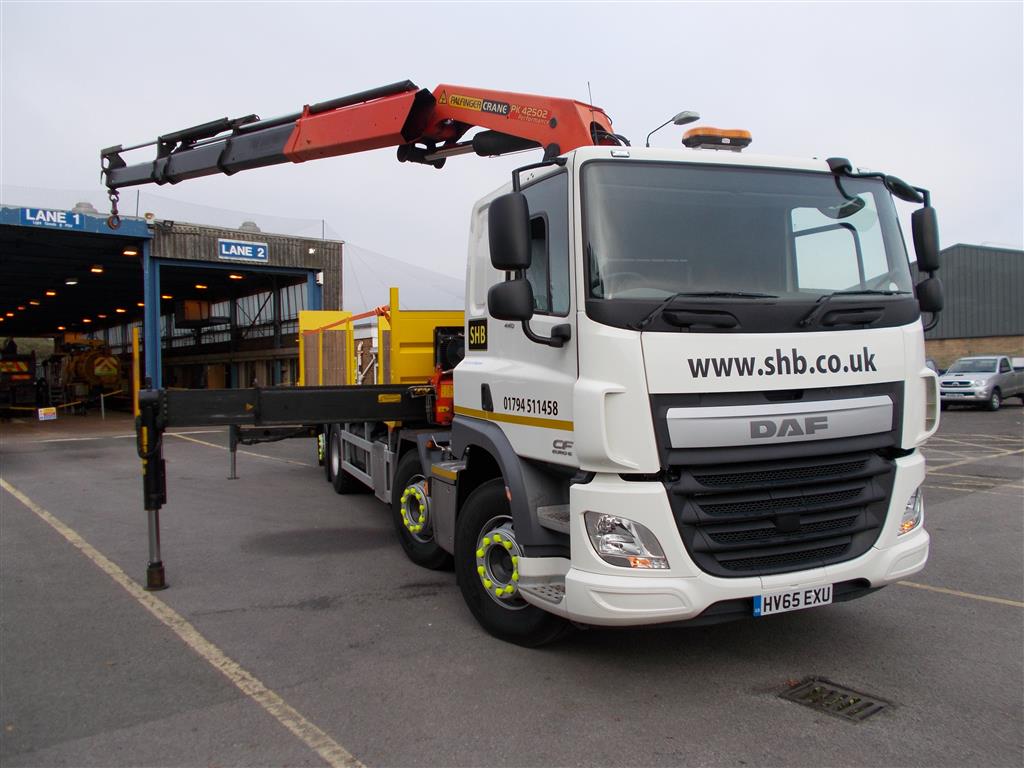

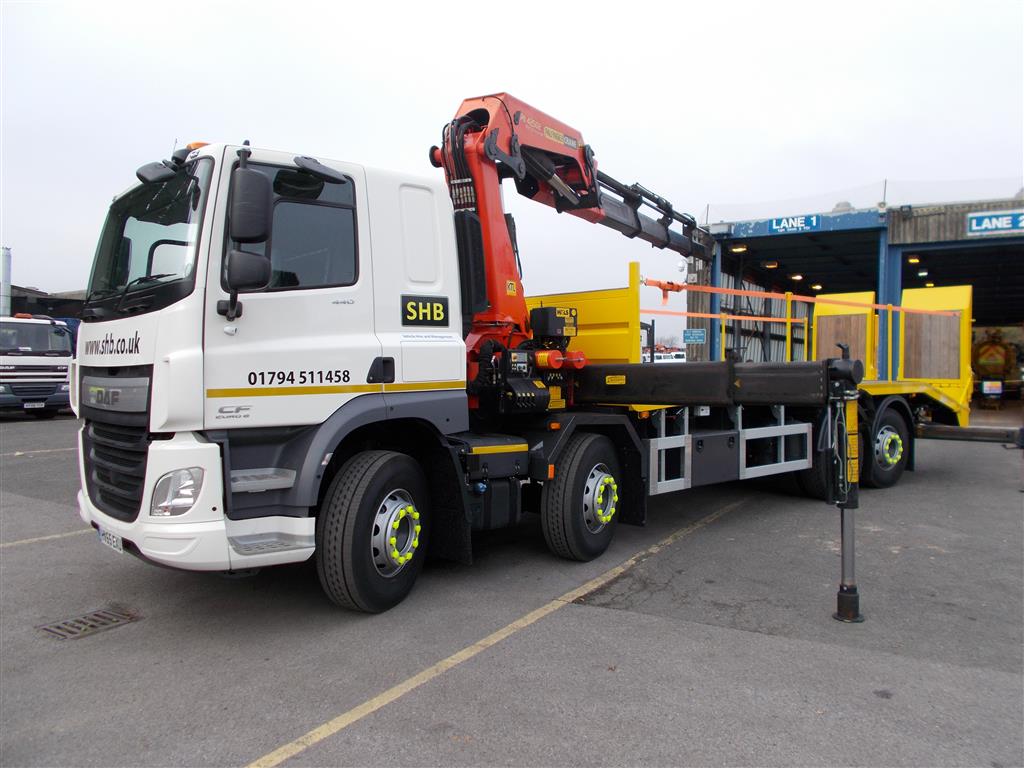

8X2 32T Cheese wedge beavertail crane, Sleeper Cab.



Body Type and  Specification

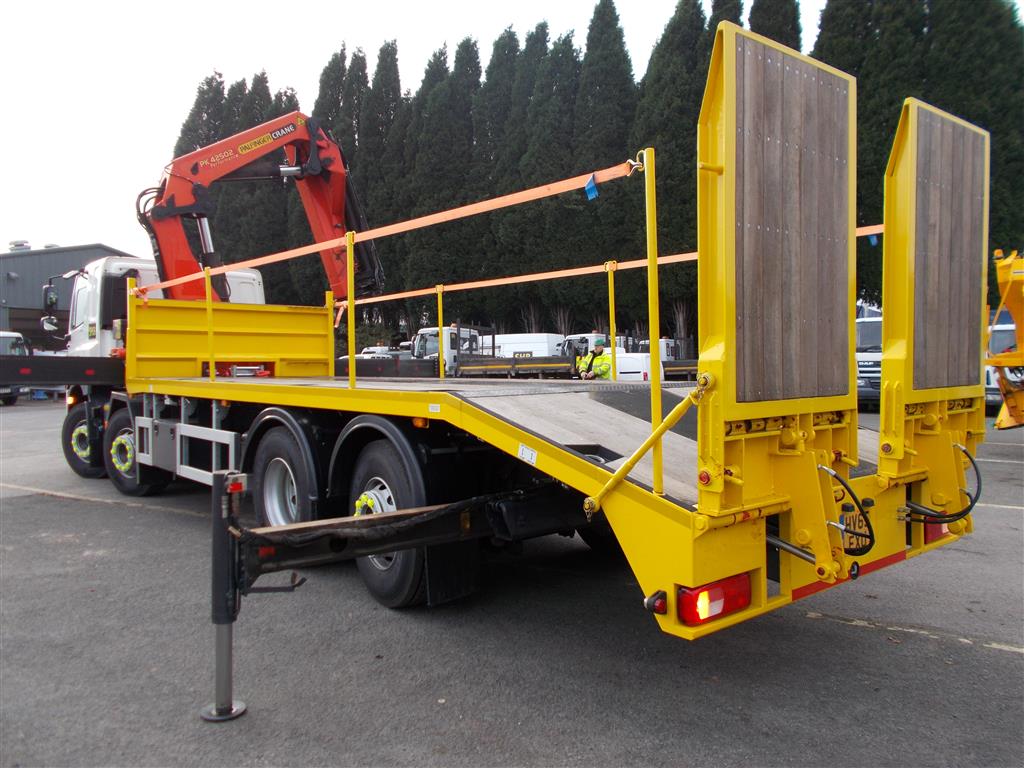

Double folding steel framed cheese wedge ramp hydraulically actuated. Deck 6700 mm flat, 1830 mm long cranked beaver, 2550 mm wide. 1 meter high headboard. Hardwood floor with steel pressed overlay. 15000 lb hydraulic winch





Crane Specification

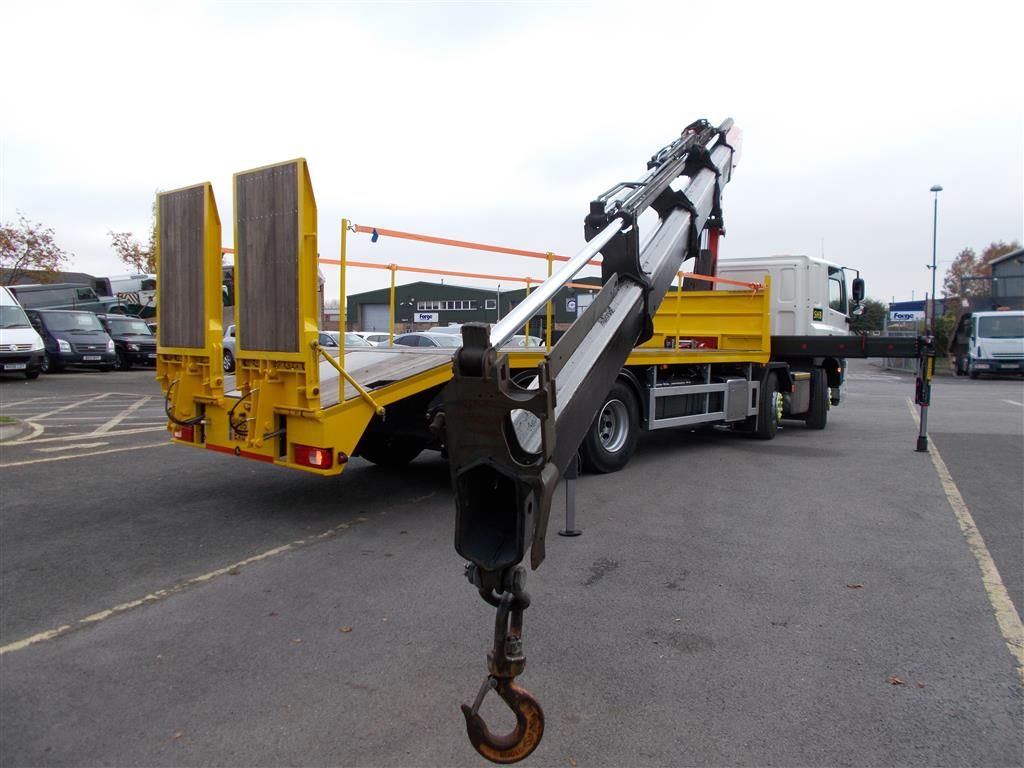

Palfinger PK44002 Remote Control 44 Tonne  Crane with swing up legs



8710 kgs @ 4.5 Metres

6800 kgs @ 5.7 Metres

5070 kgs @ 7.5 Metres

3950 kgs @ 9.5 Metres

3260 kgs @ 11.5 Metres







Additional Specification -

White Cab Yellow Body

Rear work lamps

Steel locker to n/s

Pneumatic trailer connection with c type couplings, Please note no draw bar coupling fitted.

Electric trailer connection 24v with 15 pin socket

Lighting accessory cable with 15 pin connector at one end and two 7 pin connectors at the other end
