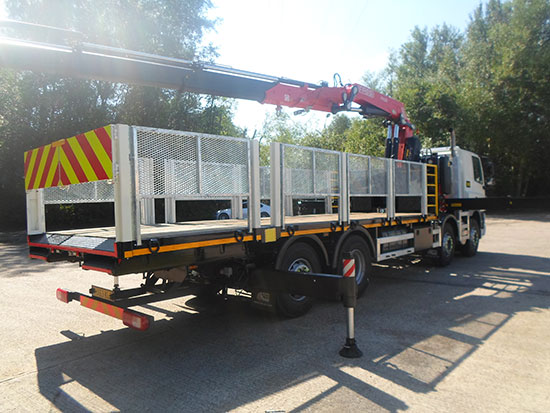

32T Beavertail with Large Crane

PDF
Description



Description:

32T DAF Euro 5 Crane Hydraulic Beavertail

Model:
FAXCF85 410 with 12.6 litre MX Engine 6400 WB

Gearbox:
Direct Drive Manual 12 Speed

Axle Configuration:
1st and 2nd Axle Steer, 3rd Traction 4th Steer

Specification:
8X2 32T Hydraulic beavertail with hydraulic ramps Sleeper Cab

Body Type and Specification:
Hydraulic beavertail with hydraulic ramps
Body length 7700mm
Body working platform height 4ft 2 from the ground
Work lights mounted on headboard

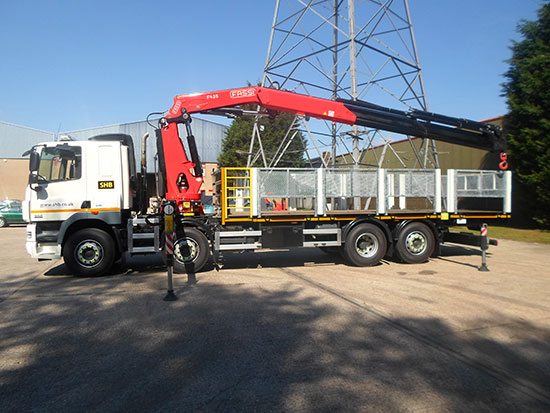

Crane Specification:
Fassi F425RA.2.26 e-dynamic
9500 kgs @ 3.85 Metres
4050 kgs @ 8.50 Metres
1250 kgs @ 12.50 Metres
1950 kgs @ 14.70 Metres
1645 kgs @ 16.75 Metres

Additional Specification:
White Cab Yellow Body
Rear work lamps
Steel locker to n/s
Pneumatic trailer connection with c type couplings, Please note, no draw bar coupling fitted
Electric trailer connection 24v with 15 pin socket
Lighting accessory cable with 15 pin connector at one end and two 7 pin connectors at the other end
LED’s on support posts
Rear Chevron panel to operate as rear gate
Chevron board 500mm high
Working lights on the crane boom
Worklight on cab roof
Vertical Exhaust
7.5T front axle



Download Vehicle Specification Sheet here
